Portable Dental X-Rays

Portable

More mobility in calls

Light and Compact

Its lightness makes handling easy

Adaptable

Prepared for use in digital sensor, phosphor plate and radiographic film

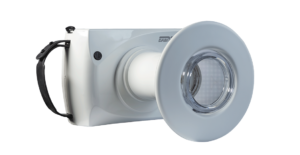

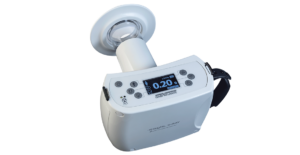

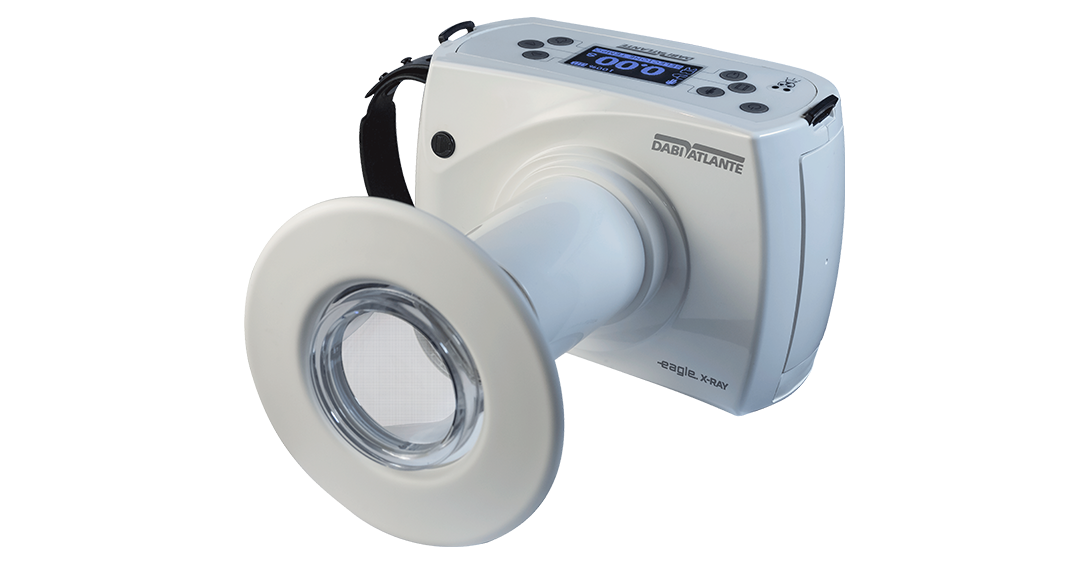

Eagle X-Ray: Portable Dental X-Rays

Dabi’s portable dental X-ray equipment ensures clearer, quality radiographs.

Eagle X-Ray: Portable Dental X-Rays

Dabi’s portable dental X-ray equipment ensures clearer, quality radiographs.

Ealge X Ray is intended for intraoral radiography of the patient’s dentition for diagnostic purposes. It is an X-ray unit for dental use, with a nominal voltage of 60kVp, tube current of 2.5 mA and a focal spot of 0.7×0.7mm.

With Eagle X Ray, equipment leakage radiation is minimized by a radiopaque material collimator, avoiding unnecessary user exposure and directing radiation to the exam target.





Features - Eagle X-Ray

Mobility

A product made to bring efficiency and sophistication everywhere



Light and Compact

Its lightness facilitates handling, bringing practicality that increases day-to-day productivity.



Perfect in execution

Prepared for use in intraoral sensor phosphor plate and radiographic film

Anvisa

Anvisa: 10101130092

  • Target angle
    16°
  • Ampoule current
    2,5 mA
  • Heating and Cooling Curve
    See head cooling characteristics chart
  • Focus-skin distance
    200 mm
  • Focus-receiver distance
    220 mm
  • Reference Axis
    At the center of the positioning cone
  • Maximum Energy Accumulated in 1h
    150 mAs.
  • Irradiation Time Selectable Range
    0.01 to 1 second (With steps of 0.01s)
  • Work factor
    1 : 60
  • Permanent Filtration
    Glass: > 1.0 mm Al eq. @ 60kVp Plastic: > 0.05 mm Al eq. @ 60kVp Aluminum filter: > 1.0 mm Al @ 60kVp
  • Total Filtration
    > 2,05 mm Al eq. @ 60kVp
  • Model
    LBP6S1PAXR
  • Nature of Radiation
    Undulating
  • Weight
    2.4 kg
  • Focal Spot
    0,7 x 0,7 mm
  • Maximum Output Power
    150 W (60kV x 2,5mA)
  • Leakage Radiation
    < 0,2 mGy/h @ 60kV, 2.5 mA
  • Operating Temperature
    Loaded: 0° to 40°C Unloaded: -20° to 75°C
  • Ampoule Voltage
    60kV
  • Charging voltage
    24 V
  • Shear Voltage
    16,5 V
  • Maximum Operating Voltage (Intensity)
    60 kVp
  • Rated voltage
    21,6V – 2.50Ah
  • Type
    Li-ion rechargeable
  • Generator type
    Constant Power High Frequency Generator
  • Type of Radiation
    X-ray
